HydroRad-ES1 Single-channel Radiometer with Anti-fouling Shutter

Ideal for long-term deployments, the HydroRad-ES1 includes a copper shutter that automatically protects the light collector from bio-fouling.  Typically used to measure downwelling solar irradiance, it can also be used to measure irradiance or radiance in any orientation or location.  Like all HydroRad models, it is a complete measurement system with sophisticated data logging and interfacing capabilities.

 Measurement
Configuration
  • Irradiance or radiance collector on top surface
  • Calibrated Wavelength Range: 350 nm to 850 nm
  • Pixel Resolution: 0.30 to 0.35nm
  • Automatic exposure control: spectrometer integration time from 21 ms to 20 seconds, depending on light levels.
  • Shipped fully calibrated for absolute radiometric measurements.

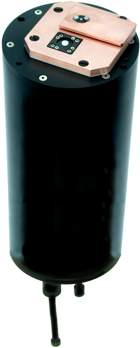

HydroRad-ES1

shutter open to show

irradiance collector

Data Logging
  • Sampling control options:
    • Autonomous control by internal real-time clock
    • Manual control by case-mounted switch
    • Real-time control via Windows software
  • 128 MB non-volatile storage holds more than 20,000 full-resolution spectra (larger capacities available for special applications).
  • Calibration can be applied to data by the HydroRad, or externally on a PC.
  • Variable, programmable sampling rates.

Mechanical
  • Diameter: 13.3 cm (5.25")
  • Body length: 30.5 cm (12"), 36 cm (14") including connectors
  • Weight: 3.5 kg dry, 0.7 kg submerged

Electrical
  • Internal rechargeable batteries provide up to 18 hours of continuous operation
  • Optional external power supply: 10V to 15V, 120 mA typical
  • Power/Data Connector: Subconn MCBH8M; Mate MCIL8F
  • Optional 8-pin slave port: Subconn MCBH8F; Mate MCIL8M
  • Data Interface: RS232, selectable 9600 to 230 Kbaud

Environmental

  • Operating Temperature: 0 to 35 C
  • Maximum Depth: 200 m
