HydroRad Models

Overview HydroRad-E1 HydroRad-ES1 HydroRad-E2 HydroRad-1 HydroRad-2 HydroRad-3 HydroRad-4 Software

HydroRad-E1 Single-channel Radiometer System

The HydroRad-E1 measures irradiance or radiance through a light collector mounted on the end of its case.  Typically used to measure downwelling solar irradiance, it can also be used to measure irradiance or radiance in any orientation or location, above or below water.  Like all HydroRad models, it is a completely self-contained measurement system with sophisticated data logging and interfacing capabilities.

 Measurement
Configuration
  • Irradiance or radiance collector on top surface
  • Calibrated Wavelength Range: 350 nm to 850 nm
  • Pixel Resolution: 0.30 to 0.35nm
  • Automatic exposure control: spectrometer integration time from 21 ms to 20 seconds, depending on light levels.
  • Shipped fully calibrated for absolute radiometric measurements.

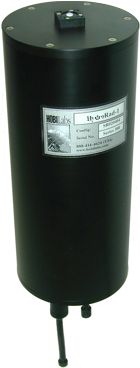

HydroRad-E1

shown with

Irradiance collector

Data Logging
  • Sampling control options:
    • Autonomous control by internal real-time clock
    • Manual control by case-mounted switch
    • Real-time control via Windows software
  • 128 MB onboard storage holds more than 20,000 full-resolution spectra (larger capacities available for special applications).
  • Calibration can be applied to data by the HydroRad, or externally on a PC.
  • Variable, programmable sampling rates.

Mechanical
  • Diameter: 13.3 cm (5.25")
  • Body length: 30.5 cm (12"), 36 cm (14") including connectors
  • Weight: 3.3 kg dry, 0.5 kg submerged

Electrical
  • Internal rechargeable batteries provide up to 18 hours of continuous operation
  • Optional external power supply: 10V to 15V, 120 mA typical
  • Power/Data Connector: Subconn MCBH8M; Mate MCIL8F
  • Optional 8-pin slave port: Subconn MCBH8F; Mate MCIL8M
  • Data Interface: RS232, selectable 9600 to 230 Kbaud

Environmental

  • Operating Temperature: 0 to 35 C
  • Maximum Depth: 200 m
Copyright © 1998-2019 by Hydro-Optics, Biology, & Instrumentation Laboratories All rights reserved.
All specifications subject to change without notice.
