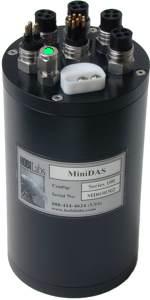

MiniDAS

Mechanical

  • Diameter: 10.8 cm (4.25")
  • Length: 18.5 cm (7.3")
  • Weight: 1.8 kg dry, 0.2 kg in water
  • Material: Acetal Plastic (standard, 500 m depth), Anodized Aluminum (2500 m depth)
MiniDAS

Electrical

  • Input voltage: 12V DC nominal, operates from 7V to 18V DC.
  • Active power consumption: 700 mW typical.
  • Sleep-mode current consumption: < 100 microamp
  • Power/Console connector: MCBH8M; Mate MCIL8F
  • Battery connector: MCBH2F; Mate MCIL2M
  • Instrument Port connectors: Four MCBH4F; Mate MCIL4M
    Other configurations available.

Input/Output

  • RS232 Host port for communication with host computer
  • 3 RS232 serial ports instruments (7-port option available)
  • Analog inputs: Max. 4
  • A/D resolution: 16-bits
  • Input voltage ranges: -10 to +10 V
  • Power outputs: up to 4, switched power taken from main input;
    each output supplies up to 1A (protected by resettable fuse)

Environmental

  • Operating Temperature: 0 to 35 C
  • Maximum Depth: 500 m standard, 2500 m optional, (contact HOBI Labs regarding other depth requirements)

Data Logging

  • Data stored on internal compact flash card (nonvolatile)
  • Standard memory 128M; capacities up to 2 GB available.
  • Hard disk available for higher capacity in custom configurations
