  ProductsLight MeasurementLight Collectors Plane Irradiance

Plane Irradiance

Overview Specifications Manual

Mechanical

  • Dimensions: 2.5 cm square
  • Length (stand-alone configuration, shown at right) 0.9cm, 1.5 cm including SMA connector
  • Weight: 10 g dry, 5g submerged

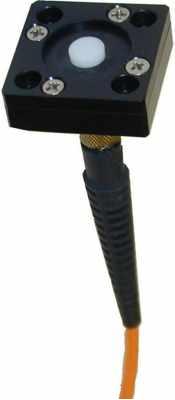

Collector on small SMA cable

Stand-alone
collector on
user cable

Optical

  • Usable wavelength range: 350nm to 1000nm



  • Fiber Optic Connector: SMA-905

Environmental

  • Waterproofing: The face of the collector is sealed with an internal o-ring.
    • In HOBI Labs cable assemblies the entire SMA connection is also sealed.
    • In the stand-alone configuration (shown at right) the user must encapsulate the SMA connection for underwater use.
  • Maximum depth: 800 m
  • Operating Temperature: 0 to 85C
