  ProductsLight Measurement WaLRUS II Hyperspectral Radiometer Buoy

WaLRUS II Hyperspectral Radiometer Buoy

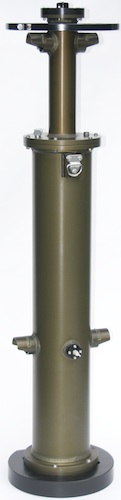

WaLRUS

WaLRUS II with Es,

and multiple Lu

collectors.

Water-Leaving Radiance Unison Spectrometer

Self-contained, tethered buoy with multiple hyperspectral radiometers, internal batteries and data logging.  Optimized for the most accurate possible determination of remote-sensing reflectance, water-leaving radiance, and other radiometric measurements at or near the water surface. Operates on the surface, or profiling at depths up to 100 meters.

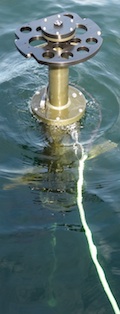

WaLRUS II deployed in-situ

WaLRUS II
in-situ

Measurements
  • Multiple simultaneous full-spectrum radiometric measurements, in a variety of configurations
  • Simultaneous measurements above and below the water surface
  • Irradiance
  • Radiance
  • Upwelling
  • Downwelling
  • Typical spectral range 340 to 850 nm
  • Spectral resolution 0.4 nm



Features
  • Tilt-roll-heading sensor
  • Real-time or internally-logged data
  • Sophisticated scriptable logging
  • Large nonvolatile data storage
  • Power from internal batteries or external source
  • Optional depth transducer for profiling applications
  • Use with HydroRads for additional measurements



Applications
  • Remote sensing validation
  • Ocean color research
  • Environmental monitoring
